Serial differencing aggregations

The serial_diff aggregation is a parent pipeline aggregation that calculates the difference between metric values in the current bucket and a previous bucket. It stores the result in the current bucket.

Use the serial_diff aggregation to compute changes between time periods with a specified lag. The lag parameter (a positive integer value) specifies which previous bucket value to subtract from the current one. The default lag value is 1, meaning serial_diff subtracts the value in the immediately previous bucket from the value in the current bucket.

Parameters

The serial_diff aggregation takes the following parameters.

Parameter Required/Optional Data type Description
buckets_path Required String The path of the aggregation buckets to be aggregated. See Buckets path.
gap_policy Optional String The policy to apply to missing data. Valid values are skip and insert_zeros. Default is skip. See Data gaps.
format Optional String A DecimalFormat formatting string. Returns the formatted output in the aggregation’s value_as_string property.
lag Optional Integer The historical bucket to subtract from the current bucket. Must be a positive integer. Default is 1.

Example

The following example creates a date histogram with a one-month interval from the OpenSearch Dashboards logs sample data. The sum subaggregation calculates the sum of all bytes for each month. Finally, the serial_diff aggregation calculates month-to-month difference in total bytes from these sums:

GET opensearch_dashboards_sample_data_logs/_search
{
   "size": 0,
   "aggs": {
      "monthly_bytes": {
         "date_histogram": {
            "field": "@timestamp",
            "calendar_interval": "month"
         },
         "aggs": {
            "total_bytes": {
               "sum": {
                  "field": "bytes"
               }
            },
            "monthly_bytes_change": {
               "serial_diff": {
                  "buckets_path": "total_bytes",
                  "lag": 1
               }
            }
         }
      }
   }
}

The response contains the month-to-month difference for the second and third months. (The first month serial_diff cannot be calculated because there’s no previous month against which to compare it):

{
  "took": 3,
  "timed_out": false,
  "_shards": {
    "total": 1,
    "successful": 1,
    "skipped": 0,
    "failed": 0
  },
  "hits": {
    "total": {
      "value": 10000,
      "relation": "gte"
    },
    "max_score": null,
    "hits": []
  },
  "aggregations": {
    "monthly_bytes": {
      "buckets": [
        {
          "key_as_string": "2025-03-01T00:00:00.000Z",
          "key": 1740787200000,
          "doc_count": 480,
          "total_bytes": {
            "value": 2804103
          }
        },
        {
          "key_as_string": "2025-04-01T00:00:00.000Z",
          "key": 1743465600000,
          "doc_count": 6849,
          "total_bytes": {
            "value": 39103067
          },
          "monthly_bytes_change": {
            "value": 36298964
          }
        },
        {
          "key_as_string": "2025-05-01T00:00:00.000Z",
          "key": 1746057600000,
          "doc_count": 6745,
          "total_bytes": {
            "value": 37818519
          },
          "monthly_bytes_change": {
            "value": -1284548
          }
        }
      ]
    }
  }
}

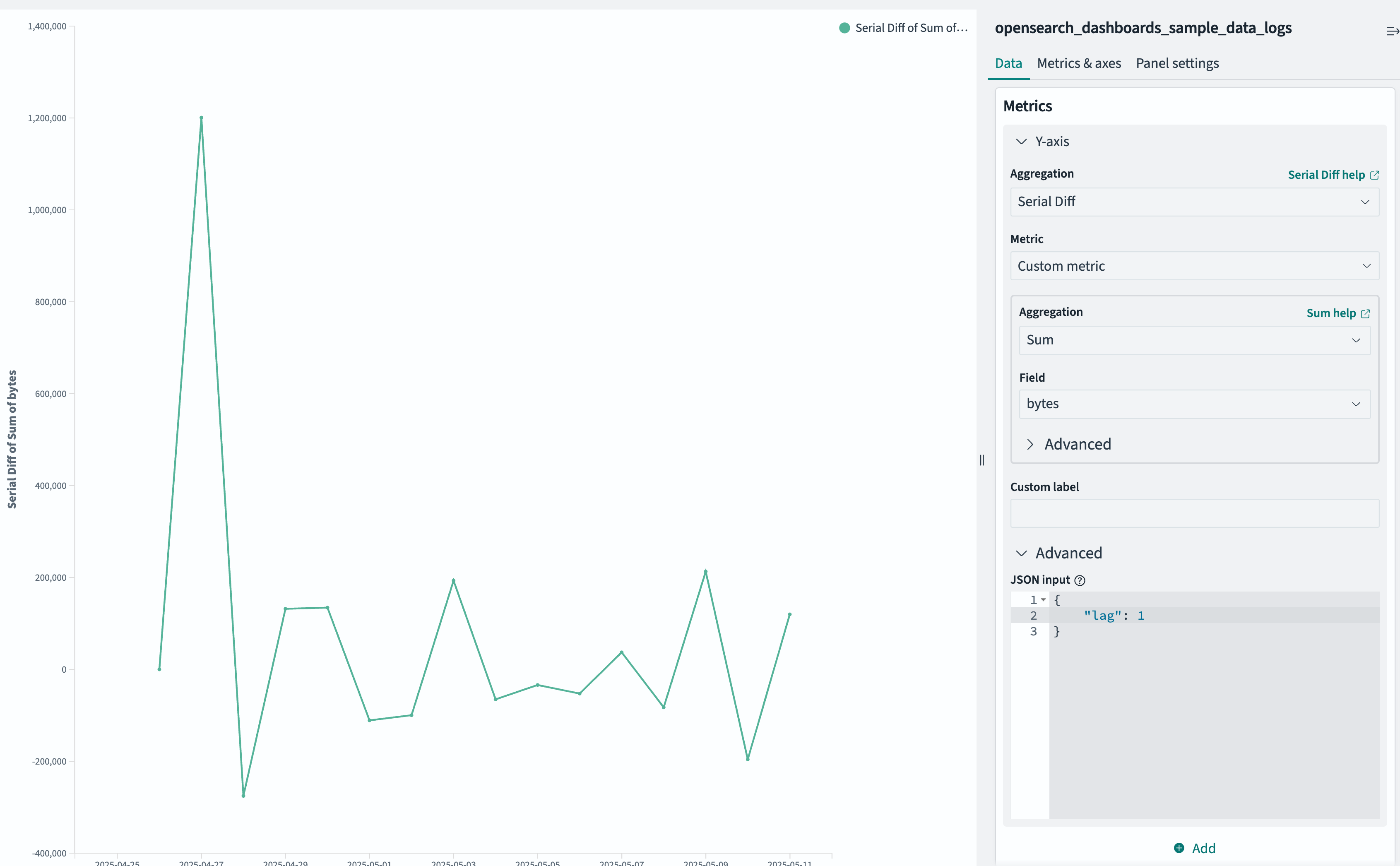

The following line chart shows the results of the serial_diff aggregation. The x-axis represents time, and the y-axis shows the month-over-month change in total bytes transferred. Each data point on the line reflects the difference between the total bytes in that month and the previous month. For example, a value of 5,000,000 means that the system transferred 5 million more bytes than the prior month; a negative value indicates a decrease. The first month is excluded from the line because there’s no previous bucket against which to compare it (the difference is undefined). The line starts with the second month and continues across all available data.

Example serial difference aggregation visualization

This visualization helps you quickly spot spikes, drops, or trends in data volume over time.

Example: Multi-period differences

Use a larger lag value to compare each bucket with one that occurred further in the past. The following example computes differences in weekly byte data with a lag of 4 (meaning each bucket is compared to the one from 4 weeks earlier). This has the effect of removing any variation with a period of 4 weeks:

GET opensearch_dashboards_sample_data_logs/_search
{
   "size": 0,
   "aggs": {
      "monthly_bytes": {
         "date_histogram": {
            "field": "@timestamp",
            "calendar_interval": "week"
         },
         "aggs": {
            "total_bytes": {
               "sum": {
                  "field": "bytes"
               }
            },
            "monthly_bytes_change": {
               "serial_diff": {
                  "buckets_path": "total_bytes",
                  "lag": 4
               }
            }
         }
      }
   }
}

The response contains a list of weekly buckets. Note that the serial_diff aggregation does not begin until the fifth bucket, when a bucket with a lag of 4 becomes available:

Response
{
  "took": 6,
  "timed_out": false,
  "_shards": {
    "total": 1,
    "successful": 1,
    "skipped": 0,
    "failed": 0
  },
  "hits": {
    "total": {
      "value": 10000,
      "relation": "gte"
    },
    "max_score": null,
    "hits": []
  },
  "aggregations": {
    "monthly_bytes": {
      "buckets": [
        {
          "key_as_string": "2025-03-24T00:00:00.000Z",
          "key": 1742774400000,
          "doc_count": 249,
          "total_bytes": {
            "value": 1531493
          }
        },
        {
          "key_as_string": "2025-03-31T00:00:00.000Z",
          "key": 1743379200000,
          "doc_count": 1617,
          "total_bytes": {
            "value": 9213161
          }
        },
        {
          "key_as_string": "2025-04-07T00:00:00.000Z",
          "key": 1743984000000,
          "doc_count": 1610,
          "total_bytes": {
            "value": 9188671
          }
        },
        {
          "key_as_string": "2025-04-14T00:00:00.000Z",
          "key": 1744588800000,
          "doc_count": 1610,
          "total_bytes": {
            "value": 9244851
          }
        },
        {
          "key_as_string": "2025-04-21T00:00:00.000Z",
          "key": 1745193600000,
          "doc_count": 1609,
          "total_bytes": {
            "value": 9061045
          },
          "monthly_bytes_change": {
            "value": 7529552
          }
        },
        {
          "key_as_string": "2025-04-28T00:00:00.000Z",
          "key": 1745798400000,
          "doc_count": 1554,
          "total_bytes": {
            "value": 8713507
          },
          "monthly_bytes_change": {
            "value": -499654
          }
        },
        {
          "key_as_string": "2025-05-05T00:00:00.000Z",
          "key": 1746403200000,
          "doc_count": 1710,
          "total_bytes": {
            "value": 9544718
          },
          "monthly_bytes_change": {
            "value": 356047
          }
        },
        {
          "key_as_string": "2025-05-12T00:00:00.000Z",
          "key": 1747008000000,
          "doc_count": 1610,
          "total_bytes": {
            "value": 9155820
          },
          "monthly_bytes_change": {
            "value": -89031
          }
        },
        {
          "key_as_string": "2025-05-19T00:00:00.000Z",
          "key": 1747612800000,
          "doc_count": 1610,
          "total_bytes": {
            "value": 9025078
          },
          "monthly_bytes_change": {
            "value": -35967
          }
        },
        {
          "key_as_string": "2025-05-26T00:00:00.000Z",
          "key": 1748217600000,
          "doc_count": 895,
          "total_bytes": {
            "value": 5047345
          },
          "monthly_bytes_change": {
            "value": -3666162
          }
        }
      ]
    }
  }
}
