Using UBI in Amazon OpenSearch Service

This tutorial shows you how to collect queries and events in the User Behavior Insights (UBI) format when using Amazon OpenSearch Service. After following this tutorial, you’ll be able to send authenticated queries and events to both Amazon Simple Storage Service (Amazon S3) for long-term storage and OpenSearch for real-time processing using the curl command-line tool.

This tutorial assumes the following:

  1. You are using Amazon OpenSearch Service version 2.19.
  2. You are not using the UBI plugin for OpenSearch, which becomes available in version 3.1 for Amazon OpenSearch Service.
  3. You are writing UBI data to OpenSearch using Amazon OpenSearch Ingestion, the managed version of OpenSearch Data Prepper.
  4. You have already configured permissions between OpenSearch Ingestion and your managed clusters by following the instructions found in Tutorial: Ingesting data into a domain using Amazon OpenSearch Ingestion, specifically the Required permissions step.

Step 1: Set up OpenSearch indexes for UBI

Follow these steps to create the indexes needed for UBI data:

  1. Log in to OpenSearch Dashboards in Amazon OpenSearch Service.
  2. On the main menu, select Management > Dev Tools to open the Dev Tools console.

  3. Create two new indexes: ubi_events and ubi_queries.

    1. First, start creating the mappings for the ubi_events index:

       PUT /ubi_events
 {
   "mappings":
 }

      A syntax warning will appear at this point. That’s expected; you’ll enter the mappings next.

      Open the events-mapping.json file, copy its contents, and paste them after the "mappings": line:

       PUT ubi_events
 {
   "mappings": {
     "properties": {
       "application": {
         "type": "keyword",
         "ignore_above": 256
       },
       "action_name": {
         "type": "keyword",
         "ignore_above": 100
       },
       ...
     }
   }
 }

      Run the command and verify that it succeeds.

    2. Next, create the ubi_queries index in a similar way. Set up the mappings:

       PUT ubi_queries
 {
   "mappings":
 }

      Open the queries-mapping.json file, copy its contents, and paste them after the "mappings": line. Run the command and verify that it succeeds.

Step 2: Set up Amazon S3 storage

For long-term storage of UBI data, use Amazon S3.

Before proceeding, create an S3 bucket in which the query and event data will be stored. You can do this in the AWS Management Console. Note the bucket name and the AWS Region in which it is created; you’ll need this information for the following steps.

Step 3: Set up query and event ingest pipelines

Follow these steps to set up query and event ingest pipelines.

Required permissions

To complete this tutorial, your user or role must have an attached identity-based policy with the following minimum permissions. These permissions allow you to create a pipeline role and attach a policy (iam:Create* and iam:Attach*), create or modify a domain (es:*), and work with pipelines (osis:*):

{
   "Version":"2012-10-17",
   "Statement":[
      {
         "Effect":"Allow",
         "Resource":"*",
         "Action":[
            "osis:*",
            "iam:Create*",
            "iam:Attach*",
            "es:*"
         ]
      },
      {
         "Resource":[
            "arn:aws:iam::111122223333:role/OpenSearchIngestion-PipelineRole"
         ],
         "Effect":"Allow",
         "Action":[
            "iam:CreateRole",
            "iam:AttachRolePolicy",
            "iam:PassRole"
         ]
      }
   ]
}

Your DataPrepperOpenSearchRole must have permissions similar to the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "es:ESHttpPost",
                "es:ESHttpPut",
                "es:ESHttpGet",
                "es:ESHttpHead"
            ],
            "Resource": "arn:aws:es:*:<YOUR_AWS_ACCOUNT_NUMBER>:*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:PutObject"
            ],
            "Resource": "arn:aws:s3:::<YOUR-BUCKET>/*"
        }
    ]
}

Step 3(a): Create a query pipeline

Follow these steps to create a pipeline for UBI query data:

  1. In the Amazon OpenSearch Service console, select Pipelines from the left navigation pane.
  2. Select Create pipeline.
  3. Select a Blank pipeline, then select Select blueprint.
  4. Configure the pipeline to use the HTTP source plugin, which accepts UBI query data in JSON array format. Set the OpenSearch Service domain as the sink, directing all data into the ubi_queries index. Additionally, log all events to an S3 bucket in .ndjson format.
  5. In the Source menu, select HTTP. For Path, enter /ubi/queries.
  6. For Source network options, select Public access to allow the posting of data from your application.
  7. Select Next.
  8. Skip intermediate Processor steps by selecting Next on the Processor screen.
  9. Configure the first sink:
    • In OpenSearch resource type, select Managed cluster.
    • Select the OpenSearch Service domain you created earlier.
    • In Index name, enter ubi_queries. Make sure this index exists with the required UBI schema.
  10. Configure the second sink:
    • Select Add Sink.
    • Select Amazon S3.
    • Enter the bucket name and AWS Region you created previously.
    • In Event Collection Timeout, enter 60s to observe data flow quickly.
    • Select NDJSON as the format.
  11. Select Next.
  12. Name the pipeline ubi-queries-pipeline and leave the capacity settings at their defaults.
  13. Select Next, then Create Pipeline.

Step 3(b): Test the query pipeline

When the pipeline status is Active, you can start ingesting data into it. You must sign all HTTP requests to the pipeline using AWS Signature Version 4. Use an HTTP tool such as Postman or awscurl to send some data to the pipeline. As with indexing data directly to a domain, ingesting data into a pipeline always requires either an AWS Identity and Access Management (IAM) role or an IAM access key and secret key.

To test the pipeline, use these steps:

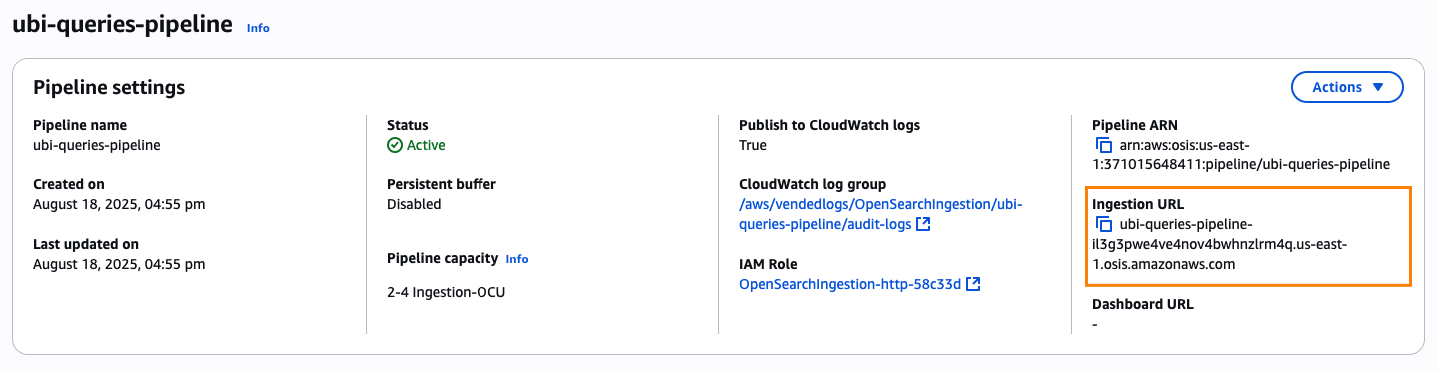

  1. Retrieve the ingestion URL from the Pipeline settings page, shown in the following image.

    Pipeline Settings

  2. Post a UBI query to the ingest pipeline. The following is an example of posting a query using awscurl:

     awscurl --service osis --region us-east-1 \
     -X POST \
     -H "Content-Type: application/json" \
     -d '[{
     "query_response_id": "117d75fb-ea76-41dc-9d1d-1d7bba548bd8",
     "user_query": "laptop",
     "query_id": "d194b734-70a4-41dc-b103-b26a56a277b5",
     "application": "Chorus",
     "query_response_hit_ids": [
       "B076YX2LML",
       "B07S3T59VP",
       "B075ZGJSL1",
       "B07FMGGRGG",
       "B07KN5JP3H",
       "B07FM8BNBC",
       "B007OYLNGA",
       "B07P75NDMB",
       "B004HJ1ZB8",
       "B01M69KU15",
       "B072ZW6NBL",
       "B07R7NL612",
       "B083GH3L2N",
       "B06XNQDR8J",
       "B07ZQJQ4HV",
       "B07YZHH5WY",
       "B07F822FND",
       "B004XAVT8K",
       "B07F5JN761",
       "B087RNZT41"
     ],
     "query_attributes": {},
     "client_id": "CLIENT-9a9968ac-664b-42d7-9a9e-96f412b5ab49",
     "timestamp": "2025-01-23T13:18:22.274+0000"
   }]' \
 https://ubi-queries-pipeline-il3g3pwe4ve4nov4bwhnzlrm4q.us-east-1.osis.amazonaws.com/ubi/queries

    You should receive a 200 OK response.

  3. Query for the event data that you posted using the Dev Tools console. Note that it may take some time for the data to flow through OpenSearch Ingestion into the ubi_queries index:

     GET /ubi_queries/_search
 {
   "query": {
     "match_all": {}
   },
   "sort": [
     { "timestamp": { "order": "desc" } }
   ]
 }

    If you want the newly written data to appear immediately, run the following request:

     POST /ubi_queries/_refresh

Step 3(c): Create an event pipeline

Repeat Step 3(a) to set up a pipeline for the UBI event data. Use the following table to replace query-specific values with their event equivalents.

Setting Query pipeline Event pipeline
Path /ubi/queries /ubi/events
Index name ubi_queries ubi_events
Pipeline name ubi-queries-pipeline ubi-events-pipeline
S3 path prefix pattern ubi_queries/ ubi_events/
Dev Tools search GET ubi_queries/_search GET ubi_events/_search
Refresh command POST ubi_queries/_refresh POST ubi_events/_refresh

Step 3(d): Test the event pipeline

Test the event pipeline by following Step 3(b). The following is an example of posting a query using awscurl:

awscurl --service osis --region us-east-1 \
    -X POST \
    -H "Content-Type: application/json" \
    -d '[
  {
    "action_name": "product_hover",
    "client_id": "CLIENT-9a9968ac-664b-42d7-9a9e-96f412b5ab49",
    "query_id": "d194b734-70a4-41dc-b103-b26a56a277b5",
    "page_id": "/",
    "message_type": "INFO",
    "message": "Integral 2GB SD Card memory card (undefined)",
    "timestamp": 1724944081669,
    "event_attributes": {
      "object": {
        "object_id_field": "product",
        "object_id": "1625640",
        "description": "Integral 2GB SD Card memory card",
        "object_detail": null
      }
    }
  }
]
' \
https://ubi-events-pipeline-il3g3pwe4ve4nov4bwhnzlrm4q.us-east-1.osis.amazonaws.com/ubi/events

Now you’re ready to start collecting UBI data for your applications.
