Implementing faceted search in OpenSearch
A facet is a filterable field that users can select to narrow their search results. In an e-commerce context, you might see facets like brand, color, size, and price range on the left side of search results. For example, a query like “winter jacket” may return many products. Facets let users filter products by a particular color or price range.
Faceted search displays value or range counts for each facet, helping users understand the distribution of results and quickly apply filters. This approach is especially useful in e-commerce and location-based search. You can implement facets using terms aggregations for exact values (like colors or sizes) and range aggregations for continuous values (like prices, dates, or distances).
This tutorial shows you how to implement faceted search in OpenSearch using a product catalog for an e-commerce website as an example.
Step 1: Define your index mapping
Start by defining the fields you’ll use for faceting. The mapping configuration is crucial for effective faceted search. For faceting on string fields, map the fields to keyword instead of text because text fields are not optimized for aggregations.
While you can enable aggregations on text fields by setting "fielddata": true, this approach should be avoided in production because it loads all field values into heap memory, significantly increasing memory usage and potentially causing performance issues and out-of-memory errors.
A common challenge in faceted search is handling inconsistent capitalization in your data. For example, colors might be stored as “red”, “RED”, or “Red”, which creates separate facet buckets and fragments your results.
To solve this, create an ingest pipeline that normalizes values to lowercase during indexing:
PUT _ingest/pipeline/normalize-color-pipeline
{
"description": "Normalize color field to lowercase",
"processors": [
{
"lowercase": {
"field": "color"
}
}
]
}
Then map all fields to keyword for aggregation and apply the pipeline to the index:
PUT /products
{
"mappings": {
"properties": {
"name": {
"type": "text"
},
"description": {
"type": "text"
},
"color": {
"type": "keyword"
},
"size": {
"type": "keyword"
},
"price": {
"type": "float"
}
}
},
"settings": {
"default_pipeline": "normalize-color-pipeline"
}
}
Step 2: Index product data
Next, index sample data into your index:
POST /products/_bulk
{ "index": {"_id": 1} }
{ "name": "Cotton T-shirt", "description": "Comfortable t-shirt for everyday wear", "color": "red", "size": "M", "price": 19.99 }
{ "index": {"_id": 2} }
{ "name": "T-shirt", "description": "Soft cotton t-shirt perfect for casual outings", "color": "Blue", "size": "L", "price": 19.99 }
{ "index": {"_id": 3} }
{ "name": "Jeans", "description": "Classic denim jeans with a modern fit", "color": "blue", "size": "M", "price": 49.99 }
{ "index": {"_id": 4} }
{ "name": "Sweater", "description": "Warm wool sweater for cold weather", "color": "RED", "size": "L", "price": 39.99 }
Step 3: Run a faceted search
Use the terms aggregation to return facet buckets for the desired fields (in this example, color and size):
POST /products/_search
{
"query": {
"match": {
"name": "T-shirt"
}
},
"aggs": {
"colors": {
"terms": {
"field": "color"
}
},
"sizes": {
"terms": {
"field": "size"
}
}
}
}
The response contains all t-shirts aggregated by color and size:
Response
{
"took": 68,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 2,
"relation": "eq"
},
"max_score": 0.59534115,
"hits": [
{
"_index": "products",
"_id": "2",
"_score": 0.59534115,
"_source": {
"color": "blue",
"size": "L",
"price": 19.99,
"name": "T-shirt",
"description": "Soft cotton t-shirt perfect for casual outings"
}
},
{
"_index": "products",
"_id": "1",
"_score": 0.48764127,
"_source": {
"color": "red",
"size": "M",
"price": 19.99,
"name": "Cotton T-shirt",
"description": "Comfortable t-shirt for everyday wear"
}
}
]
},
"aggregations": {
"sizes": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "L",
"doc_count": 1
},
{
"key": "M",
"doc_count": 1
}
]
},
"colors": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "blue",
"doc_count": 1
},
{
"key": "red",
"doc_count": 1
}
]
}
}
}
Searching multiple fields
To search in both the name and description fields, use a multi_match query. Note that while the query searches across multiple text fields (name and description), the aggregations use the keyword fields (color, size) to ensure consistent facet values:
POST /products/_search
{
"query": {
"multi_match": {
"query": "cotton t-shirt",
"fields": ["name", "description"],
"operator": "and",
"type": "best_fields"
}
},
"aggs": {
"colors": {
"terms": {
"field": "color"
}
},
"sizes": {
"terms": {
"field": "size"
}
}
}
}
The response contains both t-shirts:
Response
{
"took": 33,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 2,
"relation": "eq"
},
"max_score": 1.0944791,
"hits": [
{
"_index": "products",
"_id": "2",
"_score": 1.0944791,
"_source": {
"color": "blue",
"size": "L",
"price": 19.99,
"name": "T-shirt",
"description": "Soft cotton t-shirt perfect for casual outings"
}
},
{
"_index": "products",
"_id": "1",
"_score": 0.9111493,
"_source": {
"color": "red",
"size": "M",
"price": 19.99,
"name": "Cotton T-shirt",
"description": "Comfortable t-shirt for everyday wear"
}
}
]
},
"aggregations": {
"sizes": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "L",
"doc_count": 1
},
{
"key": "M",
"doc_count": 1
}
]
},
"colors": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "blue",
"doc_count": 1
},
{
"key": "red",
"doc_count": 1
}
]
}
}
}
For more information about multi_match query parameters, see Multi-match query.
Returning only facet data
If you only need the facet counts without the actual search results, set "size": 0 to improve performance:
POST /products/_search
{
"size": 0,
"aggs": {
"colors": {
"terms": {
"field": "color"
}
}
}
}
Specifying the number of results
By default, terms aggregations return the top 10 most frequent terms. If you need more or fewer results, you can set the size parameter:
POST /products/_search
{
"aggs": {
"colors": {
"terms": {
"field": "color",
"size": 20
}
}
}
}
Step 4: Filter by facet values
To narrow results (for example, to search for t-shirts that are blue and size L), add filter clauses:
POST /products/_search
{
"query": {
"bool": {
"must": [
{ "match": { "name": "T-shirt" } }
],
"filter": [
{ "term": { "color": "blue" } },
{ "term": { "size": "L" } }
]
}
},
"aggs": {
"colors": {
"terms": {
"field": "color"
}
},
"sizes": {
"terms": {
"field": "size"
}
}
}
}
The response contains the matching product:
Response
{
"took": 66,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 1,
"relation": "eq"
},
"max_score": 0.59534115,
"hits": [
{
"_index": "products",
"_id": "2",
"_score": 0.59534115,
"_source": {
"color": "blue",
"size": "L",
"price": 19.99,
"name": "T-shirt",
"description": "Soft cotton t-shirt perfect for casual outings"
}
}
]
},
"aggregations": {
"sizes": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "L",
"doc_count": 1
}
]
},
"colors": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "blue",
"doc_count": 1
}
]
}
}
}

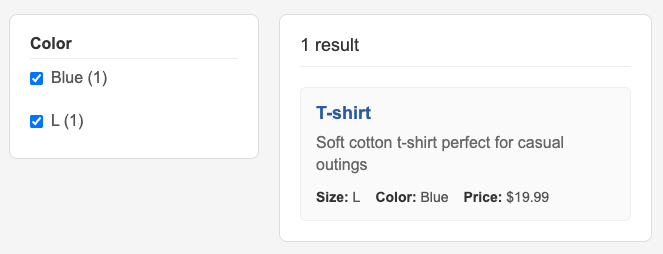

The results appear as follows.
Maintaining facet options during filtering
When users select a facet filter, they typically expect to still see the other available filtering options. For example, if a user filters for red t-shirts, the color facet should still show all available colors (red, blue, and others) from the original search results, not just “red”. This helps users understand the full range of options and easily switch between filters.
You can achieve this behavior by using a post_filter. The post_filter filters the search results after aggregations are calculated, so facets reflect the unfiltered dataset:
POST /products/_search
{
"query": {
"match": {
"name": "t-shirt"
}
},
"post_filter": {
"term": { "color": "red" }
},
"aggs": {
"all_colors": {
"terms": {
"field": "color"
}
},
"sizes_for_red": {
"filter": {
"term": { "color": "red" }
},
"aggs": {
"sizes": {
"terms": {
"field": "size"
}
}
}
}
}
}
The response contains the matching t-shirt and the color buckets for all t-shirts:
Response
{
"took": 17,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 1,
"relation": "eq"
},
"max_score": 0.48764127,
"hits": [
{
"_index": "products",
"_id": "1",
"_score": 0.48764127,
"_source": {
"color": "red",
"size": "M",
"price": 19.99,
"name": "Cotton T-shirt",
"description": "Comfortable t-shirt for everyday wear"
}
}
]
},
"aggregations": {
"sizes_for_red": {
"doc_count": 1,
"sizes": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "M",
"doc_count": 1
}
]
}
},
"all_colors": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "blue",
"doc_count": 1
},
{
"key": "red",
"doc_count": 1
}
]
}
}
}

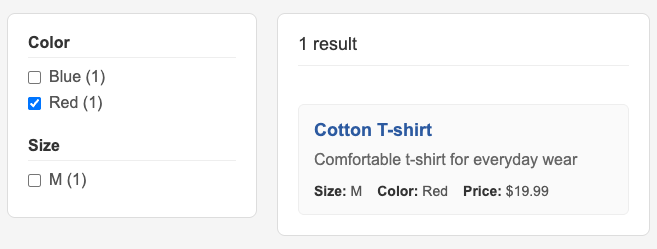

The results appear as follows.
Alternatively, you can use global aggregation to ensure that facets always reflect the complete dataset, regardless of applied filters:
POST /products/_search
{
"query": {
"bool": {
"must": [
{ "match": { "name": "t-shirt" } }
],
"filter": [
{ "term": { "color": "red" } }
]
}
},
"aggs": {
"all_facets": {
"global": {},
"aggs": {
"all_colors": {
"filter": {
"match": { "name": "t-shirt" }
},
"aggs": {
"colors": {
"terms": {
"field": "color"
}
}
}
}
}
},
"filtered_sizes": {
"terms": {
"field": "size"
}
}
}
}
The global aggregation runs against the entire index, so you need to reapply your base query (the t-shirt search) within the global aggregation to get the correct facet counts. The response is similar to the one produced by the preceding approach:
Response
{
"took": 9,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 1,
"relation": "eq"
},
"max_score": 0.48764127,
"hits": [
{
"_index": "products",
"_id": "1",
"_score": 0.48764127,
"_source": {
"color": "red",
"size": "M",
"price": 19.99,
"name": "Cotton T-shirt",
"description": "Comfortable t-shirt for everyday wear"
}
}
]
},
"aggregations": {
"filtered_sizes": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "M",
"doc_count": 1
}
]
},
"all_facets": {
"doc_count": 4,
"all_colors": {
"doc_count": 2,
"colors": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "blue",
"doc_count": 1
},
{
"key": "red",
"doc_count": 1
}
]
}
}
}
}
}
Excluding facet values
In addition to filtering for specific facet values, users may want to exclude certain values from their results. For example, a user might want to see all products except red ones. Use the must_not clause to exclude specific facet values:
POST /products/_search
{
"query": {
"bool": {
"must": [
{ "match_all": {} }
],
"must_not": [
{ "term": { "color": "red" } }
]
}
},
"aggs": {
"colors": {
"terms": {
"field": "color"
}
},
"sizes": {
"terms": {
"field": "size"
}
}
}
}
The response contains non-red products with the color and size buckets:
Response
{
"took": 6,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 2,
"relation": "eq"
},
"max_score": 1,
"hits": [
{
"_index": "products",
"_id": "2",
"_score": 1,
"_source": {
"color": "blue",
"size": "L",
"price": 19.99,
"name": "T-shirt",
"description": "Soft cotton t-shirt perfect for casual outings"
}
},
{
"_index": "products",
"_id": "3",
"_score": 1,
"_source": {
"color": "blue",
"size": "M",
"price": 49.99,
"name": "Jeans",
"description": "Classic denim jeans with a modern fit"
}
}
]
},
"aggregations": {
"sizes": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "L",
"doc_count": 1
},
{
"key": "M",
"doc_count": 1
}
]
},
"colors": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "blue",
"doc_count": 2
}
]
}
}
}
The results appear as follows.
Step 5: Range facets
You can create range facets for fields containing numeric values like prices, ratings, or dates.
Numeric ranges
To create price ranges for the products, use a range aggregation:
POST /products/_search
{
"aggs": {
"price_ranges": {
"range": {
"field": "price",
"ranges": [
{ "to": 20, "key": "Under $20" },
{ "from": 20, "to": 40, "key": "$20 - $40" },
{ "from": 40, "key": "Over $40" }
]
}
}
}
}
The response buckets products by price:
Response
{
"took": 76,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 4,
"relation": "eq"
},
"max_score": 1,
"hits": [
{
"_index": "products",
"_id": "1",
"_score": 1,
"_source": {
"color": "red",
"size": "M",
"price": 19.99,
"name": "Cotton T-shirt",
"description": "Comfortable t-shirt for everyday wear"
}
},
{
"_index": "products",
"_id": "2",
"_score": 1,
"_source": {
"color": "blue",
"size": "L",
"price": 19.99,
"name": "T-shirt",
"description": "Soft cotton t-shirt perfect for casual outings"
}
},
{
"_index": "products",
"_id": "3",
"_score": 1,
"_source": {
"color": "blue",
"size": "M",
"price": 49.99,
"name": "Jeans",
"description": "Classic denim jeans with a modern fit"
}
},
{
"_index": "products",
"_id": "4",
"_score": 1,
"_source": {
"color": "red",
"size": "L",
"price": 39.99,
"name": "Sweater",
"description": "Warm wool sweater for cold weather"
}
}
]
},
"aggregations": {
"price_ranges": {
"buckets": [
{
"key": "Under $20",
"to": 20,
"doc_count": 2
},
{
"key": "$20 - $40",
"from": 20,
"to": 40,
"doc_count": 1
},
{
"key": "Over $40",
"from": 40,
"doc_count": 1
}
]
}
}
}
Geographic ranges
Geographic ranges are useful for location-based faceting, such as finding stores within certain distances from a user’s location. First, create a mapping that contains a store_location field of the geo_point type:
PUT /stores
{
"mappings": {
"properties": {
"name": {
"type": "text"
},
"store_location": {
"type": "geo_point"
}
}
}
}
Index some documents containing different stores into the index:
POST /stores/_bulk
{ "index": { "_id": "1" } }
{ "name": "Downtown Store", "store_location": { "lat": 40.7510, "lon": -73.9900 } }
{ "index": { "_id": "2" } }
{ "name": "Suburban Store", "store_location": { "lat": 40.8300, "lon": -74.2000 } }
{ "index": { "_id": "3" } }
{ "name": "Outskirts Store", "store_location": { "lat": 41.2000, "lon": -74.8000 } }
For location-based faceting (like finding products available at nearby stores), use the geo_distance aggregation:
POST /stores/_search
{
"aggs": {
"store_distance": {
"geo_distance": {
"field": "store_location",
"origin": "40.7507, -73.9895",
"unit": "mi",
"ranges": [
{ "to": 5, "key": "Within 5 miles" },
{ "from": 5, "to": 25, "key": "5-25 miles away" },
{ "from": 25, "key": "Over 25 miles away" }
]
}
}
}
}
The response contains all three stores bucketed by distance:
Response
{
"took": 16,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 3,
"relation": "eq"
},
"max_score": 1,
"hits": [
{
"_index": "stores",
"_id": "1",
"_score": 1,
"_source": {
"name": "Downtown Store",
"store_location": {
"lat": 40.751,
"lon": -73.99
}
}
},
{
"_index": "stores",
"_id": "2",
"_score": 1,
"_source": {
"name": "Suburban Store",
"store_location": {
"lat": 40.83,
"lon": -74.2
}
}
},
{
"_index": "stores",
"_id": "3",
"_score": 1,
"_source": {
"name": "Outskirts Store",
"store_location": {
"lat": 41.2,
"lon": -74.8
}
}
}
]
},
"aggregations": {
"store_distance": {
"buckets": [
{
"key": "Within 5 miles",
"from": 0,
"to": 5,
"doc_count": 1
},
{
"key": "5-25 miles away",
"from": 5,
"to": 25,
"doc_count": 1
},
{
"key": "Over 25 miles away",
"from": 25,
"doc_count": 1
}
]
}
}
}
Hierarchical faceting
Hierarchical faceting enables drill-down through a hierarchy of attributes, like Category > Subcategory > Product type. This can be implemented using fields that encode the hierarchy with delimiters.
First, create an ingest pipeline that uses the path_hierarchy tokenizer to automatically generate all hierarchy levels:
PUT _ingest/pipeline/category-hierarchy-pipeline
{
"description": "Split category path into multiple hierarchy fields",
"processors": [
{
"script": {
"lang": "painless",
"source": """
// Split the category_path on '>'
def parts = ctx.category_path.splitOnToken('>');
// Create individual-level fields
if (parts.length >= 1) {
ctx.category_level1 = parts[0].trim();
}
if (parts.length >= 2) {
ctx.category_level2 = parts[1].trim();
}
if (parts.length >= 3) {
ctx.category_level3 = parts[2].trim();
}
// Create hierarchy array with cumulative paths
def hierarchy = [];
def currentPath = '';
for (int i = 0; i < parts.length; i++) {
if (i == 0) {
currentPath = parts[i].trim();
} else {
currentPath = currentPath + '>' + parts[i].trim();
}
hierarchy.add(currentPath);
}
ctx.category_hierarchy = hierarchy;
"""
}
}
]
}
If you’re running commands in a terminal, use the corresponding cURL request:
curl -XPUT "http://localhost:9200/_ingest/pipeline/category-hierarchy-pipeline" -H 'Content-Type: application/json' -d'
{
"description": "Split category path into multiple hierarchy fields",
"processors": [
{
"script": {
"lang": "painless",
"source": "\n // Split the category_path on '\''>'\''\n def parts = ctx.category_path.splitOnToken('\''>'\'');\n \n // Create individual level fields\n if (parts.length >= 1) {\n ctx.category_level1 = parts[0].trim();\n }\n if (parts.length >= 2) {\n ctx.category_level2 = parts[1].trim();\n }\n if (parts.length >= 3) {\n ctx.category_level3 = parts[2].trim();\n }\n \n // Create hierarchy array with cumulative paths\n def hierarchy = [];\n def currentPath = '\'''\'';\n for (int i = 0; i < parts.length; i++) {\n if (i == 0) {\n currentPath = parts[i].trim();\n } else {\n currentPath = currentPath + '\''>'\'' + parts[i].trim();\n }\n hierarchy.add(currentPath);\n }\n ctx.category_hierarchy = hierarchy;\n "
}
}
]
}'
This approach avoids using fielddata on text fields by explicitly storing each hierarchy level as a separate keyword field. While this requires more storage space, it provides better query performance and is more memory efficient for aggregations. In production systems, you can automate the hierarchy level extraction during indexing using ingest pipelines or application logic.
Next, define your index mapping with hierarchical fields and set the pipeline as a default pipeline on the index:
PUT /products-advanced
{
"mappings": {
"properties": {
"name": { "type": "text" },
"color": { "type": "keyword" },
"category_path": { "type": "keyword" },
"category_level1": { "type": "keyword" },
"category_level2": { "type": "keyword" },
"category_level3": { "type": "keyword" },
"category_hierarchy": { "type": "keyword" }
}
},
"settings": {
"default_pipeline": "category-hierarchy-pipeline"
}
}
Index products with hierarchical data using the ingest pipeline to automatically generate hierarchy levels:
POST /products-advanced/_bulk
{ "index": {"_id": 1} }
{ "name": "Cotton T-Shirt", "color": "red", "category_path": "Clothing>Shirts>T-Shirts" }
{ "index": {"_id": 2} }
{ "name": "Wool Sweater", "color": "red", "category_path": "Clothing>Sweaters>Wool" }
{ "index": {"_id": 3} }
{ "name": "Running Shoes", "color": "red", "category_path": "Footwear>Athletic>Running" }
{ "index": {"_id": 4} }
{ "name": "Dress Shirt", "color": "blue", "category_path": "Clothing>Shirts>Dress" }
{ "index": {"_id": 5} }
{ "name": "Hiking Boots", "color": "blue", "category_path": "Footwear>Outdoor>Hiking" }
{ "index": {"_id": 6} }
{ "name": "Casual Sneakers", "color": "blue", "category_path": "Footwear>Casual>Sneakers" }
Query hierarchical facets using multiple aggregations to obtain different views of your category data. You can aggregate on individual hierarchy levels or view the complete hierarchy paths in a single result:
POST /products-advanced/_search
{
"aggs": {
"top_categories": {
"terms": {
"field": "category_level1"
}
},
"subcategories": {
"terms": {
"field": "category_level2"
}
},
"full_hierarchy": {
"terms": {
"field": "category_hierarchy"
}
}
}
}
The response contains a flat structure with separate aggregation results. The categories show counts with cross-category totals. For example, the Athletic subcategory shows the combined count from both Clothing (1) and Footwear (1):
Response
{
"took": 116,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 6,
"relation": "eq"
},
"max_score": 1,
"hits": [
{
"_index": "products-advanced",
"_id": "1",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>T-Shirts"
],
"category_level2": "Shirts",
"color": "red",
"category_path": "Clothing>Shirts>T-Shirts",
"name": "Cotton T-Shirt",
"category_level3": "T-Shirts"
}
},
{
"_index": "products-advanced",
"_id": "2",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Athletic",
"Clothing>Athletic>Shirts"
],
"category_level2": "Athletic",
"color": "red",
"category_path": "Clothing>Athletic>Shirts",
"name": "Athletic shirt",
"category_level3": "Shirts"
}
},
{
"_index": "products-advanced",
"_id": "3",
"_score": 1,
"_source": {
"category_level1": "Footwear",
"category_hierarchy": [
"Footwear",
"Footwear>Athletic",
"Footwear>Athletic>Running"
],
"category_level2": "Athletic",
"color": "red",
"category_path": "Footwear>Athletic>Running",
"name": "Running Shoes",
"category_level3": "Running"
}
},
{
"_index": "products-advanced",
"_id": "4",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>Dress"
],
"category_level2": "Shirts",
"color": "blue",
"category_path": "Clothing>Shirts>Dress",
"name": "Dress Shirt",
"category_level3": "Dress"
}
},
{
"_index": "products-advanced",
"_id": "5",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>Dress"
],
"category_level2": "Shirts",
"color": "white",
"category_path": "Clothing>Shirts>Dress",
"name": "Dress Shirt",
"category_level3": "Dress"
}
},
{
"_index": "products-advanced",
"_id": "6",
"_score": 1,
"_source": {
"category_level1": "Footwear",
"category_hierarchy": [
"Footwear",
"Footwear>Casual",
"Footwear>Casual>Sneakers"
],
"category_level2": "Casual",
"color": "blue",
"category_path": "Footwear>Casual>Sneakers",
"name": "Casual Sneakers",
"category_level3": "Sneakers"
}
}
]
},
"aggregations": {
"full_hierarchy": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "Clothing",
"doc_count": 4
},
{
"key": "Clothing>Shirts",
"doc_count": 3
},
{
"key": "Clothing>Shirts>Dress",
"doc_count": 2
},
{
"key": "Footwear",
"doc_count": 2
},
{
"key": "Clothing>Athletic",
"doc_count": 1
},
{
"key": "Clothing>Athletic>Shirts",
"doc_count": 1
},
{
"key": "Clothing>Shirts>T-Shirts",
"doc_count": 1
},
{
"key": "Footwear>Athletic",
"doc_count": 1
},
{
"key": "Footwear>Athletic>Running",
"doc_count": 1
},
{
"key": "Footwear>Casual",
"doc_count": 1
},
{
"key": "Footwear>Casual>Sneakers",
"doc_count": 1
}
]
},
"top_categories": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "Clothing",
"doc_count": 4
},
{
"key": "Footwear",
"doc_count": 2
}
]
},
"subcategories": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "Shirts",
"doc_count": 3
},
{
"key": "Athletic",
"doc_count": 2
},
{
"key": "Casual",
"doc_count": 1
}
]
}
}
}

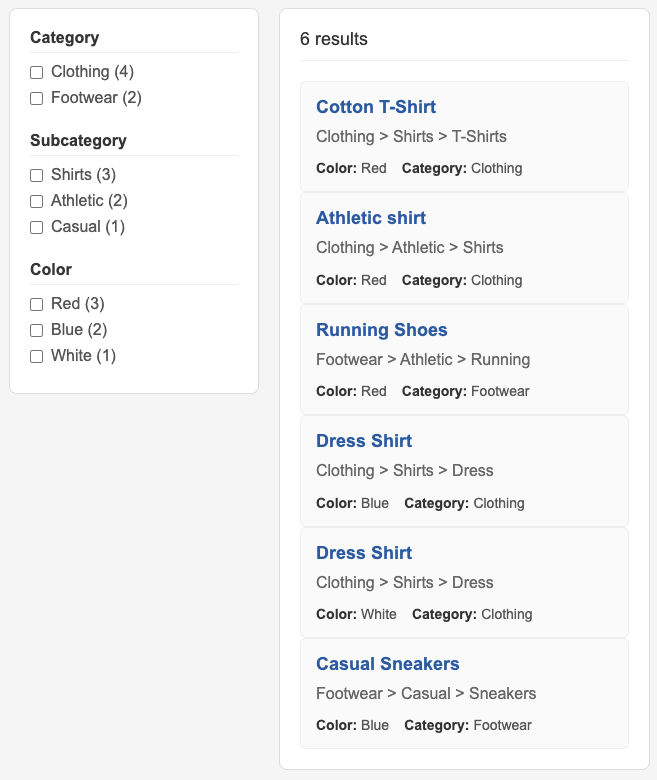

The results appear as follows.
For hierarchical navigation, use nested aggregations:
POST /products-advanced/_search
{
"aggs": {
"top_categories": {
"terms": {
"field": "category_level1"
},
"aggs": {
"subcategories": {
"terms": {
"field": "category_level2"
}
}
}
},
"full_hierarchy": {
"terms": {
"field": "category_hierarchy"
}
}
}
}

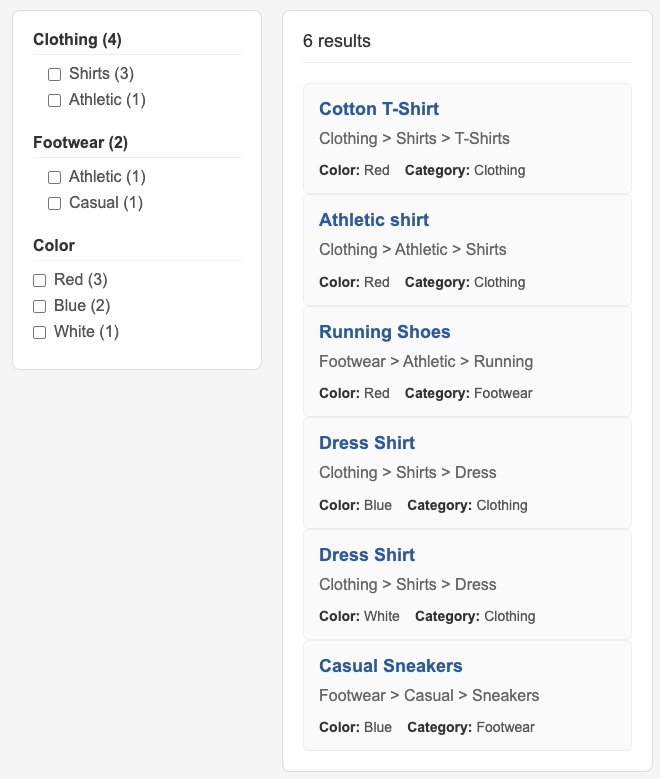

The response has a hierarchical structure with subcategories nested under their parent categories. For example, Athletic appears under both Clothing (1) and Footwear (1). Subcategory counts are scoped to their parent category:
Response
{
"took": 79,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 6,
"relation": "eq"
},
"max_score": 1,
"hits": [
{
"_index": "products-advanced",
"_id": "1",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>T-Shirts"
],
"category_level2": "Shirts",
"color": "red",
"category_path": "Clothing>Shirts>T-Shirts",
"name": "Cotton T-Shirt",
"category_level3": "T-Shirts"
}
},
{
"_index": "products-advanced",
"_id": "2",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Athletic",
"Clothing>Athletic>Shirts"
],
"category_level2": "Athletic",
"color": "red",
"category_path": "Clothing>Athletic>Shirts",
"name": "Athletic shirt",
"category_level3": "Shirts"
}
},
{
"_index": "products-advanced",
"_id": "3",
"_score": 1,
"_source": {
"category_level1": "Footwear",
"category_hierarchy": [
"Footwear",
"Footwear>Athletic",
"Footwear>Athletic>Running"
],
"category_level2": "Athletic",
"color": "red",
"category_path": "Footwear>Athletic>Running",
"name": "Running Shoes",
"category_level3": "Running"
}
},
{
"_index": "products-advanced",
"_id": "4",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>Dress"
],
"category_level2": "Shirts",
"color": "blue",
"category_path": "Clothing>Shirts>Dress",
"name": "Dress Shirt",
"category_level3": "Dress"
}
},
{
"_index": "products-advanced",
"_id": "5",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>Dress"
],
"category_level2": "Shirts",
"color": "white",
"category_path": "Clothing>Shirts>Dress",
"name": "Dress Shirt",
"category_level3": "Dress"
}
},
{
"_index": "products-advanced",
"_id": "6",
"_score": 1,
"_source": {
"category_level1": "Footwear",
"category_hierarchy": [
"Footwear",
"Footwear>Casual",
"Footwear>Casual>Sneakers"
],
"category_level2": "Casual",
"color": "blue",
"category_path": "Footwear>Casual>Sneakers",
"name": "Casual Sneakers",
"category_level3": "Sneakers"
}
}
]
},
"aggregations": {
"full_hierarchy": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "Clothing",
"doc_count": 4
},
{
"key": "Clothing>Shirts",
"doc_count": 3
},
{
"key": "Clothing>Shirts>Dress",
"doc_count": 2
},
{
"key": "Footwear",
"doc_count": 2
},
{
"key": "Clothing>Athletic",
"doc_count": 1
},
{
"key": "Clothing>Athletic>Shirts",
"doc_count": 1
},
{
"key": "Clothing>Shirts>T-Shirts",
"doc_count": 1
},
{
"key": "Footwear>Athletic",
"doc_count": 1
},
{
"key": "Footwear>Athletic>Running",
"doc_count": 1
},
{
"key": "Footwear>Casual",
"doc_count": 1
},
{
"key": "Footwear>Casual>Sneakers",
"doc_count": 1
}
]
},
"top_categories": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "Clothing",
"doc_count": 4,
"subcategories": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "Shirts",
"doc_count": 3
},
{
"key": "Athletic",
"doc_count": 1
}
]
}
},
{
"key": "Footwear",
"doc_count": 2,
"subcategories": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "Athletic",
"doc_count": 1
},
{
"key": "Casual",
"doc_count": 1
}
]
}
}
]
}
}
}
The results appear as follows.
Prefix queries enable filtering on specific branches of a category hierarchy, allowing you to scope results to a particular category level and all its subcategories. To show products contained only in the Clothing>Shirts category and its subcategories, use the keyword field for exact prefix matching:
POST /products-advanced/_search
{
"query": {
"prefix": {
"category_path": "Clothing>Shirts"
}
}
}
The response contains the matching documents. Note that the athletic shirt is not returned:
Response
{
"took": 44,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 3,
"relation": "eq"
},
"max_score": 1,
"hits": [
{
"_index": "products-advanced",
"_id": "1",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>T-Shirts"
],
"category_level2": "Shirts",
"color": "red",
"category_path": "Clothing>Shirts>T-Shirts",
"name": "Cotton T-Shirt",
"category_level3": "T-Shirts"
}
},
{
"_index": "products-advanced",
"_id": "4",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>Dress"
],
"category_level2": "Shirts",
"color": "blue",
"category_path": "Clothing>Shirts>Dress",
"name": "Dress Shirt",
"category_level3": "Dress"
}
},
{
"_index": "products-advanced",
"_id": "5",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>Dress"
],
"category_level2": "Shirts",
"color": "white",
"category_path": "Clothing>Shirts>Dress",
"name": "Dress Shirt",
"category_level3": "Dress"
}
}
]
}
}
To aggregate by color on the Clothing category only, use the following request:
POST /products-advanced/_search
{
"query": {
"prefix": {
"category_path": "Clothing>"
}
},
"aggs": {
"colors": {
"terms": {
"field": "color"
}
}
}
}
The response contains only Clothing products:
Response
{
"took": 30,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 4,
"relation": "eq"
},
"max_score": 1,
"hits": [
{
"_index": "products-advanced",
"_id": "1",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>T-Shirts"
],
"category_level2": "Shirts",
"color": "red",
"category_path": "Clothing>Shirts>T-Shirts",
"name": "Cotton T-Shirt",
"category_level3": "T-Shirts"
}
},
{
"_index": "products-advanced",
"_id": "2",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Athletic",
"Clothing>Athletic>Shirts"
],
"category_level2": "Athletic",
"color": "red",
"category_path": "Clothing>Athletic>Shirts",
"name": "Athletic shirt",
"category_level3": "Shirts"
}
},
{
"_index": "products-advanced",
"_id": "4",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>Dress"
],
"category_level2": "Shirts",
"color": "blue",
"category_path": "Clothing>Shirts>Dress",
"name": "Dress Shirt",
"category_level3": "Dress"
}
},
{
"_index": "products-advanced",
"_id": "5",
"_score": 1,
"_source": {
"category_level1": "Clothing",
"category_hierarchy": [
"Clothing",
"Clothing>Shirts",
"Clothing>Shirts>Dress"
],
"category_level2": "Shirts",
"color": "white",
"category_path": "Clothing>Shirts>Dress",
"name": "Dress Shirt",
"category_level3": "Dress"
}
}
]
},
"aggregations": {
"colors": {
"doc_count_error_upper_bound": 0,
"sum_other_doc_count": 0,
"buckets": [
{
"key": "red",
"doc_count": 2
},
{
"key": "blue",
"doc_count": 1
},
{
"key": "white",
"doc_count": 1
}
]
}
}
}
Similarly, you can aggregate the Clothing>Shirts category by specifying "category_path": "Clothing>Shirts" in the prefix query. Your application code can then strip prefixes to provide a cleaner display (for example, change Clothing>Shirts to Shirts) if necessary. OpenSearch does the heavy lifting (tokenizing and aggregating), while your application code handles the display formatting by stripping prefixes based on hierarchy level.
