Using dashboard variables

You can reference dashboard variables in queries in the visualization editor to create dynamic, interactive dashboards.

Variable syntax

Dashboard variables can be referenced in queries using the following syntax options.

Basic syntax

Use $variableName for most cases:

source=logs | where service='$service' | stats count() by region

Braced syntax

Use ${variableName} when the variable name is followed by other characters without white space:

source = logs | where ${env}_level = "error"

Braced syntax ensures that the variable name is properly delimited. Without braces, $env_level is interpreted as a variable named env_level instead of env.

Using variables in queries

Dashboard variables support Piped Processing Language (PPL) and Prometheus Query Language (PromQL). The following examples use PPL.

Single-value variable for filtering

The following query filters logs by a single-value variable:

source=logs | where service='$service' | stats count() by status_code

When service is set to api, the query resolves to:

source=logs | where service='api' | stats count() by status_code

Multi-value variable for filtering

The following query filters logs by a multi-value variable:

source=logs | where region IN $region | stats count() by service

When region has multiple values selected (us-east, us-west), the query resolves to:

source=logs | where region IN ('us-east', 'us-west') | stats count() by service

Multi-value with numbers

When a query variable’s options are detected as numeric or Boolean values, multi-values are formatted without quotes:

source=logs | where status_code IN $status | stats count()

When status has multiple numeric values selected, the query resolves to:

source=logs | where status_code IN (200, 404, 500) | stats count()

Variable for grouping dimension

The following query uses a variable to control the grouping dimension:

source=logs | stats count() by `$group_by`

When group_by is set to region, the query resolves to:

source=logs | stats count() by region

Variable for time interval

The following query uses a variable to control the time interval:

source=logs | stats count() by span(timestamp, $interval)

When interval is set to 5m, the query resolves to:

source=logs | stats count() by span(timestamp, 5m)

Variable for metric calculation

The following query uses a variable to control which metric is calculated:

source=metrics | stats avg($metric) by service

When metric is set to response_time, the query resolves to:

source=metrics | stats avg(response_time) by service

Multi-value variable formatting

When a variable allows multiple selections, values are automatically formatted based on the query language.

Autocomplete suggestions

Query editors in OpenSearch Dashboards provide autocomplete suggestions for dashboard variables.

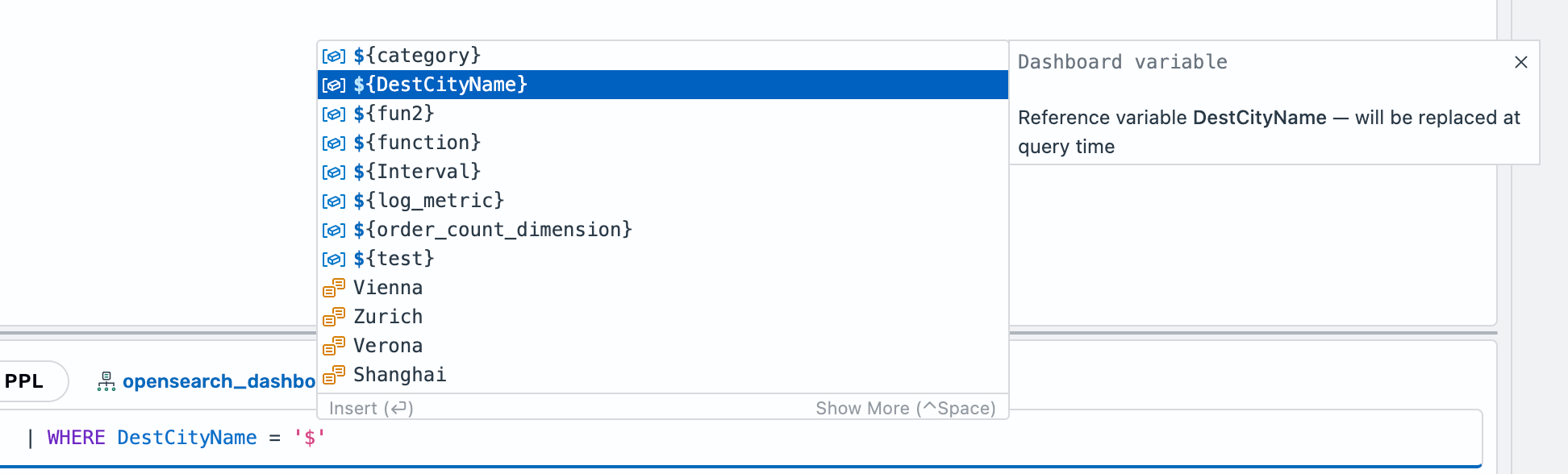

1. In the query editor, type $. A dropdown appears showing all available dashboard variables.

2. Select a variable from the list or continue typing to filter, as shown in the following image.



3. Press Enter or Tab to insert the variable.

Using variables in visualizations

Dashboard variables integrate with the OpenSearch Dashboards visualization editor, which provides full support for dashboard variables when editing visualizations from a dashboard.

Filtering by a variable value

Variables can serve as filtering conditions within your visualizations. Instead of applying filters to entire dashboards, embed variables directly into PPL queries to create targeted filtering for specific panels.

To filter a visualization by a variable value, follow these steps:

1. Create a machine_os variable:
   1. In your Observability workspace, select Dashboards in the left navigation.
   2. Open an existing dashboard or select Create > Dashboard to create a new dashboard. If creating a new dashboard, save it first by entering a title and selecting Save.
   3. At the top of the dashboard, select Add variable.

   4. In the Name, enter machine_os. In the Type, select Query. In the Options Query, select opensearch_dashboards_sample_data_logs. In the query box, enter the following query:

      | FIELDS `machine.os`


   5. Select Preview and make sure that you see values such as win 8, ios, and win xp in the Preview of values. Then select Add variable to save.
2. Filter by a variable value:
   1. Open a new visualization editor by selecting Create new in the dashboard and then selecting Add visualization.
   2. In the time filter, select Last 30 days.
   3. In the query box, enter the following query:

   | WHERE `machine.os` = '${machine_os}' | STATS avg(memory) BY span(`@timestamp`, 1d)

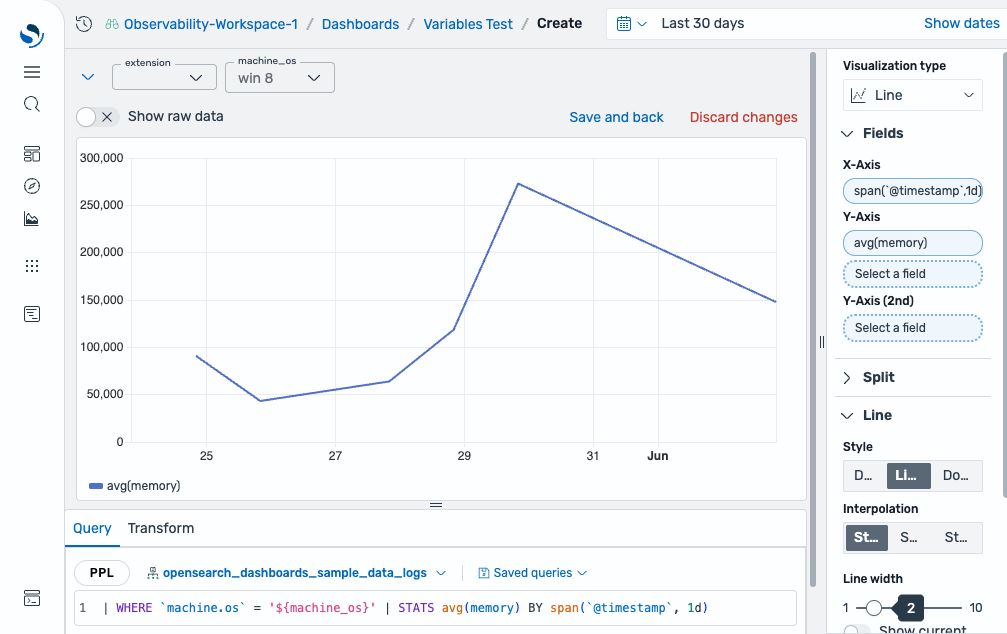

   To filter the visualization by machine_os values, select the value in the machine_os dropdown list (for example, select win 8), as shown in the following image.



Selecting a metric dynamically

Use a variable to control which field is used in an aggregation. This lets you switch between metrics (for example, memory and bytes) without editing the query.

To select a metric dynamically, follow these steps:

1. Create a log_metric variable:
   1. In your Observability workspace, select Dashboards in the left navigation.
   2. Open an existing dashboard or select Create > Dashboard to create a new dashboard. If creating a new dashboard, save it first by entering a title and selecting Save.
   3. At the top of the dashboard, select Add variable.
   4. In the Name, enter log_metric. In the Type, select Custom. In the Custom options, enter memory and press Enter to add. Then enter bytes and press Enter to add.
   5. Select Add variable to save.
2. Use the variable in a visualization:
   1. Open a new visualization editor by selecting Create new in the dashboard and then selecting Add visualization.
   2. In the time filter, select Last 30 days.

   3. In the query box, enter the following query:

      source=opensearch_dashboards_sample_data_logs
      | stats avg($log_metric) as avg_${log_metric} by span(`timestamp`, 1h) as timestamp, response

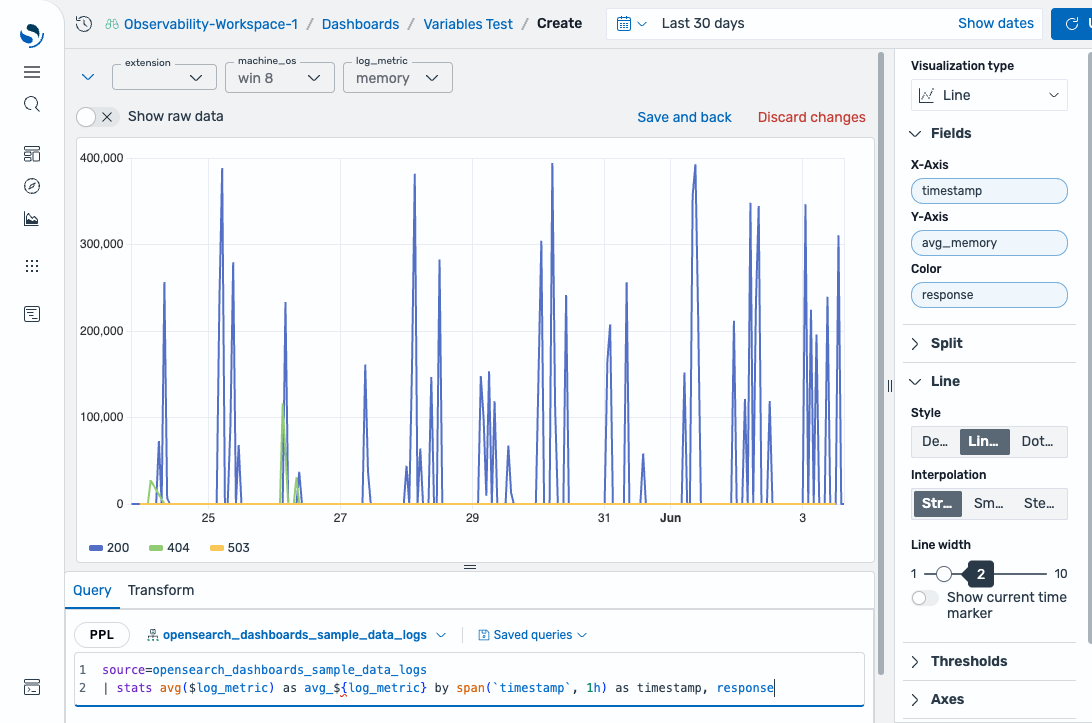

   To switch between metrics, select a value in the log_metric dropdown list (for example, select memory or bytes).



Changing time intervals dynamically

Use a variable to let dashboard viewers switch between time aggregation intervals (for example, 1h, 6h, or 1d) without editing the query.

To change time intervals dynamically, follow these steps:

1. Create an interval variable:
   1. In your Observability workspace, select Dashboards in the left navigation.
   2. Open an existing dashboard or select Create > Dashboard to create a new dashboard. If creating a new dashboard, save it first by entering a title and selecting Save.
   3. At the top of the dashboard, select Add variable.
   4. In the Name, enter interval. In the Type, select Custom. In the Custom options, enter 1d and press Enter to add. Repeat for 12h, 6h, and 1h.
   5. Select Add variable to save.
2. Use the variable in a visualization:
   1. Open a new visualization editor by selecting Create new in the dashboard and then selecting Add visualization.
   2. In the time filter, select Last 30 days.

   3. In the query box, enter the following query:

      source=opensearch_dashboards_sample_data_logs | stats AVG(`bytes`) as avg_bytes, MAX(`bytes`) as max_bytes by span(`timestamp`, $interval)


   To switch between intervals, select a value in the interval dropdown list (for example, select 6h) and select Update. The visualization reflects the selected time bucketing, as shown in the following image.



Changing aggregation functions dynamically

Use a variable to let dashboard viewers switch between aggregation functions (for example, avg, max, or min) without editing the query.

To change aggregation functions dynamically, follow these steps:

1. Create a function variable:
   1. In your Observability workspace, select Dashboards in the left navigation.
   2. Open an existing dashboard or select Create > Dashboard to create a new dashboard. If creating a new dashboard, save it first by entering a title and selecting Save.
   3. At the top of the dashboard, select Add variable.
   4. In the Name, enter function. In the Type, select Custom. In the Custom options, enter avg and press Enter to add. Repeat for max and min.
   5. Select Add variable to save.
2. Use the variable in a visualization:
   1. Open a new visualization editor by selecting Create new in the dashboard and then selecting Add visualization.
   2. In the time filter, select Last 30 days.

   3. In the query box, enter the following query:

      | STATS ${function}(memory) BY span(`@timestamp`, 1d)

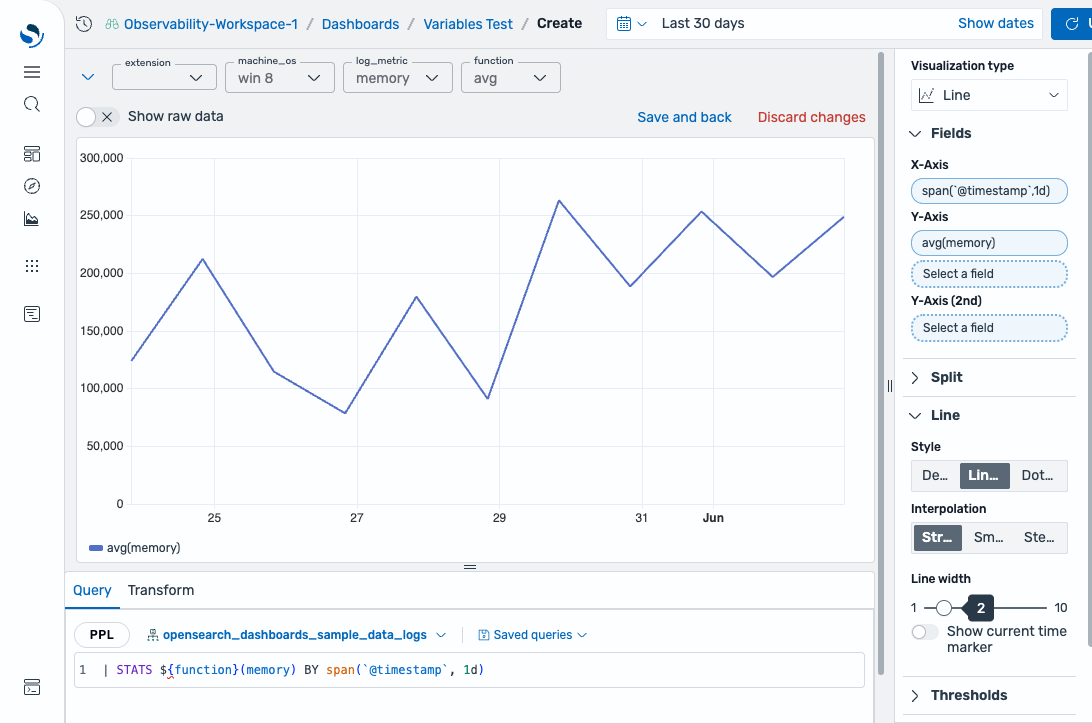

   To switch between functions, select a value in the function dropdown list (for example, select max) and select Update. The visualization reflects the selected aggregation function, as shown in the following image.



Cascading and cross-panel variables

The following sections describe advanced variable use cases.

Cascading variables

Create dependent variables for which one variable filters the options of another. For example, select a region first, then select from services available in that region.

Create a region variable:

source=logs | dedup region | fields region

Create a service variable that references region:

source=logs | where region='$region' | dedup service | fields service

When the region value changes, the service variable automatically refreshes its options to show only services in the selected region.

Cross-panel filtering

Use a single variable to filter multiple visualizations simultaneously. For example, create a service variable and reference it in multiple visualization editors.

Visualization editor 1 (request count by service):

source=logs | where service='$service' | stats count() by status_code

Visualization editor 2 (response time by service):

source=metrics | where service='$service' | stats avg(response_time)

Changing the service variable value updates both visualization editors at once.
