Area charts

An area chart is a line chart with the area below the line shaded with a color. You can stack multiple buckets to show relative proportions of a running absolute value of the variable, or superimpose buckets or different variables to compare within x-axis buckets or time values.

When to use area charts

Use area charts to show both trend patterns and proportional relationships simultaneously. They reveal contribution patterns, showing which components drive overall totals and when those patterns change.

Creating an area chart

The examples on this page use the Sample flight data dataset and build on each other. Before you begin, complete the prerequisites.

To create an area chart that shows flight count over time, follow these steps:

  1. In the New Visualization dialog, select Area, then select your index pattern (for example, opensearch_dashboards_sample_data_flights).
  2. Under Metrics, expand Y-axis Count and set Aggregation to Count.

    For the Count metric there is no Field selection because Count denotes the number of documents, not a field value.

  3. Under Buckets, select Add > X-axis.
  4. Set Aggregation to Date Histogram and Field to timestamp.

    The timestamp field is the only date-time field available in the sample flight data.

  5. Select Update.

    The chart generates a jagged time-series plot of the document count for an automatically determined bucket size (for example, one day).

  6. Drag-select the portion of the chart containing the data. Leave a margin on either side of the data so as not to cut any data off.

    The data expands to fill the entire width of the graph. Since there’s more room, the auto-calculated bucket size decreases to 12 hours.

  7. Under Buckets, select Add > Split series.
  8. Set Sub aggregation to Terms and Field to Cancelled.
  9. Select Update.

    The chart shows the counts of cancelled and uncancelled flights superimposed on the timeline, as shown in the following image.

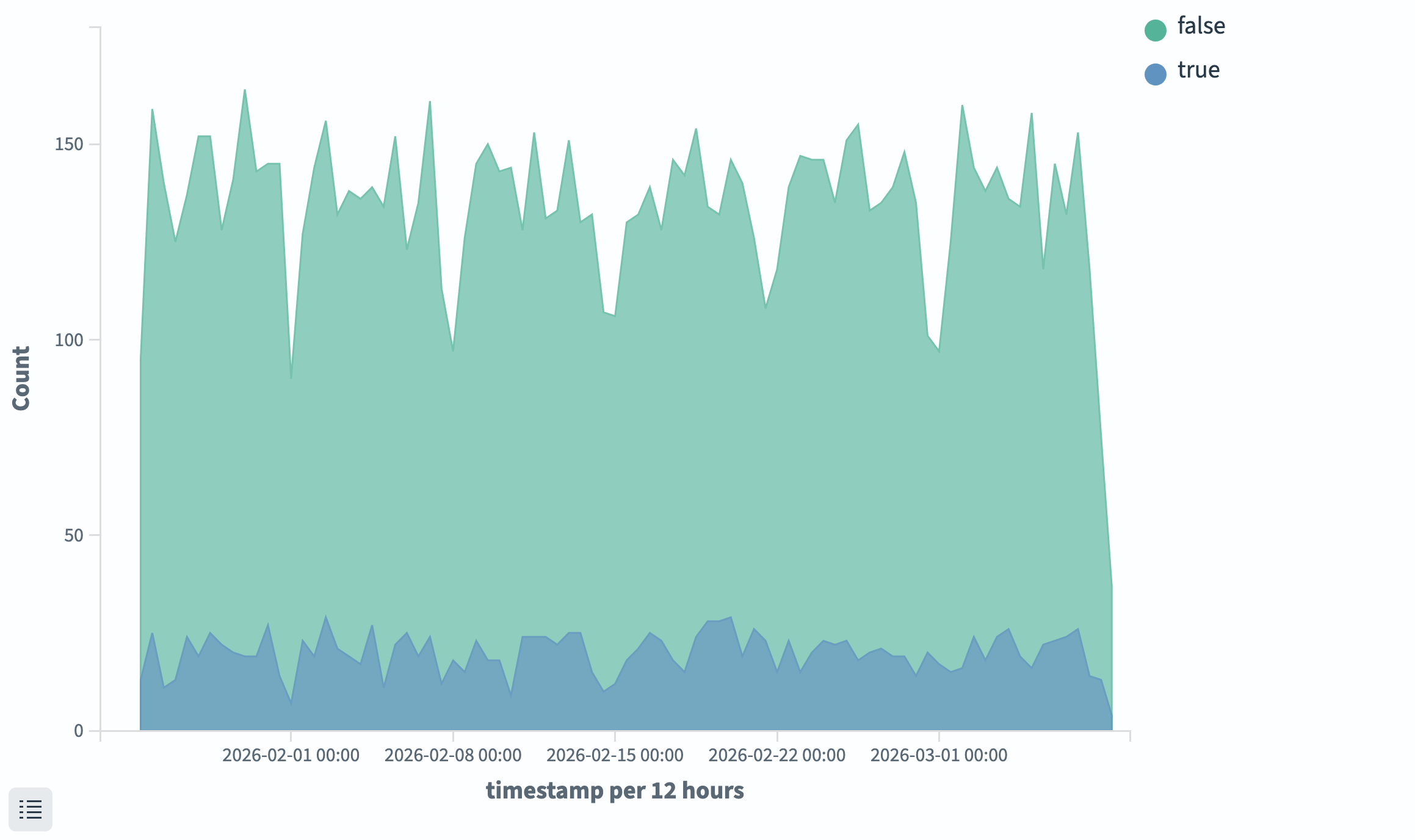

    Area chart with flight cancellation status overlaid

    Note the following:

    • The count of cancelled (Cancelled = true) and uncancelled flights are superimposed on the graph. The cancelled flight count seems to average about 10% of the uncancelled flights.
    • The flight count is cyclic over time, with a one-day dip every week.

Stacked area chart

By default, split series are overlaid (Normal mode). To stack the areas on top of each other so they show the total volume:

  1. Select the Metrics & axes tab.
  2. Under Metrics, expand the Count series.
  3. Change Mode from Normal to Stacked.
  4. Select Update.

The areas are now stacked, showing both individual category volumes and the combined total, as shown in the following image.

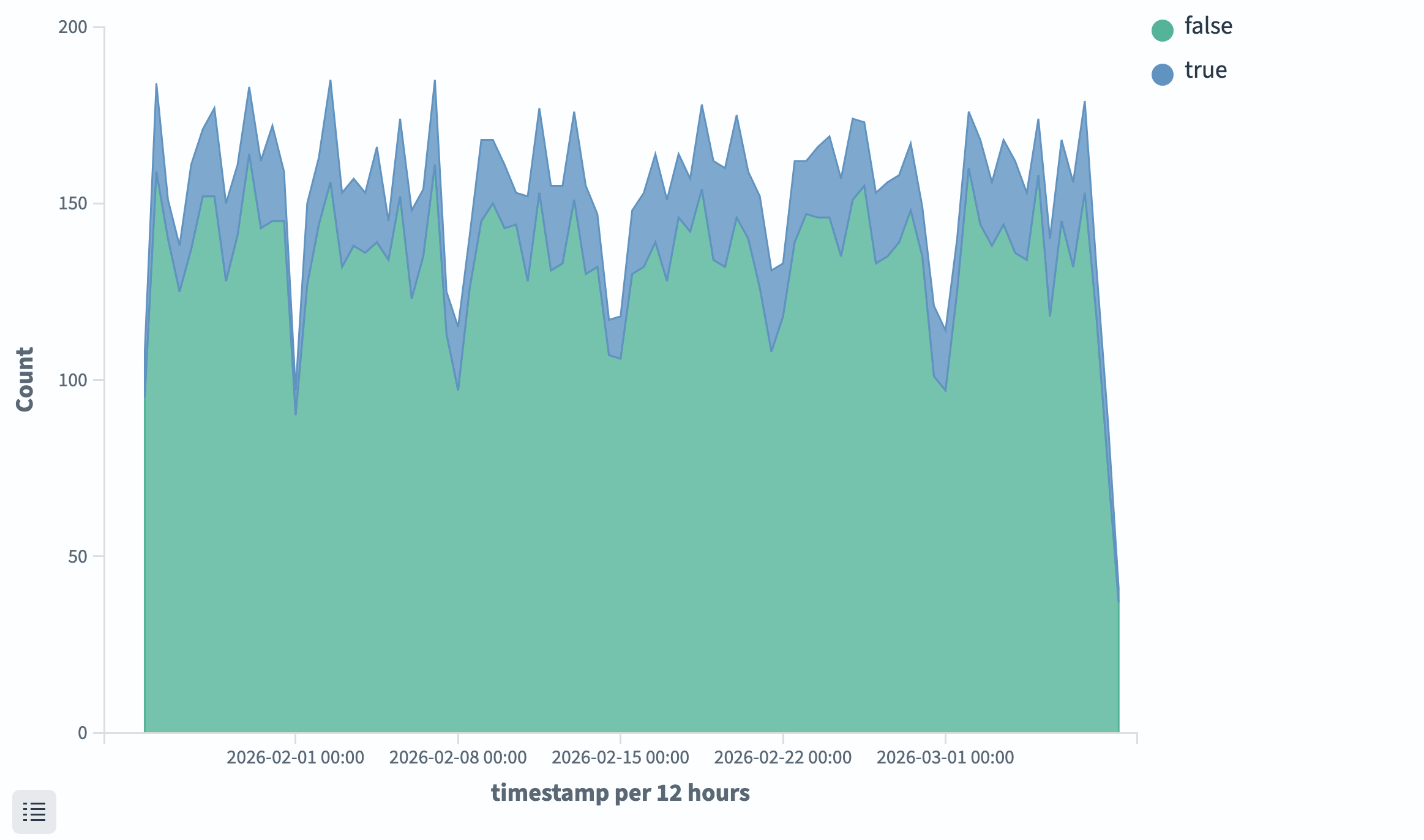

Stacked area chart showing flight cancellation status

Multiple metrics

Add a second Y-axis metric to compare different measurements on the same chart:

  1. Under Metrics, select Add.
  2. Set Aggregation to Average and Field to AvgTicketPrice.
  3. Select Update.

The chart now overlays the average ticket price on top of the count. To give the second metric its own scale, go to the Metrics & axes tab, expand the new metric, and assign it to a new value axis.

Configuring an area chart

The area chart editor has three configuration tabs.

Data tab

The Data tab defines what data is displayed.

Metrics

Metrics define the Y-axis values. Each metric computes an aggregation over the documents in each bucket.

Setting Description
Aggregation The aggregation function. Supported values: Count, Average, Sum, Min, Max, Unique Count, Median, Percentiles, Percentile Ranks, Top Hit, Standard Deviation.
Field The numeric field to aggregate (not required for Count).

Select Add to plot multiple metrics on the same chart.

Buckets

Buckets define how data is grouped.

Bucket type Description
X-axis Groups data along the horizontal axis. Typically uses a Date Histogram for time-based data or a Histogram for numeric ranges.
Split series Splits the data into multiple stacked (or overlaid) areas by the values of a field. Uses Terms, Filters, or other bucket aggregations.
Split chart Creates separate chart panels for each bucket value (small multiples). Can split in rows or columns.

Metrics & axes tab

The Metrics & axes tab controls how each metric is rendered and how the axes are configured.

Series settings

Each metric series has the following options.

Setting Description
Value axis The Y-axis this series is plotted against. Select New axis to create a secondary Y-axis.
Chart type Overrides the chart type for this series. Supported values: Line, Area, Bar.
Mode Controls stacking behavior. Stacked layers areas on top of each other. Normal overlaps areas.
Line mode Controls line interpolation. Straight draws direct segments. Smoothed applies a curve. Stepped creates a staircase pattern.

Y-axes

Each Y-axis has the following options.

Setting Description
Position Where the axis appears. Supported values: Left, Right.
Mode Controls the Y-axis scale mode. Normal displays raw values. Percentage normalizes stacked areas to 100%. Wiggle and Silhouette are stream graph layout variants.
Scale type Determines the scale. Supported values: Linear, Log, Square root.
Show Shows or hides the axis line and labels.
Labels Controls label rotation. Supported values: Horizontal, Vertical, Angled.

X-axis

Setting Description
Position Where the axis appears. Supported values: Top, Bottom.
Show Shows or hides the axis line and labels.
Filter labels When enabled, overlapping labels are automatically hidden.
Align Controls label rotation. Supported values: Horizontal, Vertical, Angled.
Truncate Sets the maximum pixel width for labels before truncation.

Panel settings tab

The Panel settings tab controls the overall chart appearance.

Settings

Setting Description
Legend position Where the legend appears. Supported values: Top, Left, Right, Bottom.
Show tooltip When enabled, displays values on hover.
Order buckets by sum When enabled, orders split series by their total value rather than alphabetically.

Grid

Setting Description
Show X-axis lines When enabled, displays vertical grid lines at each X-axis tick.
Y-axis lines Select a Y-axis to display horizontal grid lines, or Don’t show to hide them.

Threshold line

Setting Description
Show threshold line When enabled, draws a horizontal reference line at a specified value.
Threshold value The Y-axis value at which the line is drawn.
Line width The thickness of the threshold line in pixels.
Line style The line style. Supported values: Full (solid), Dashed, Dot-dashed.
Line color The color of the threshold line.
